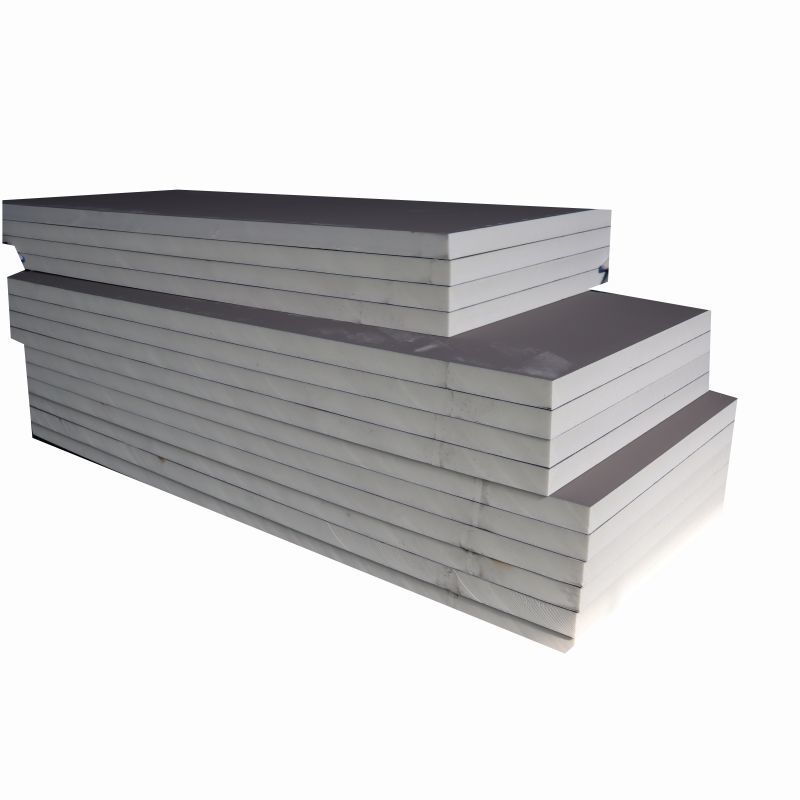

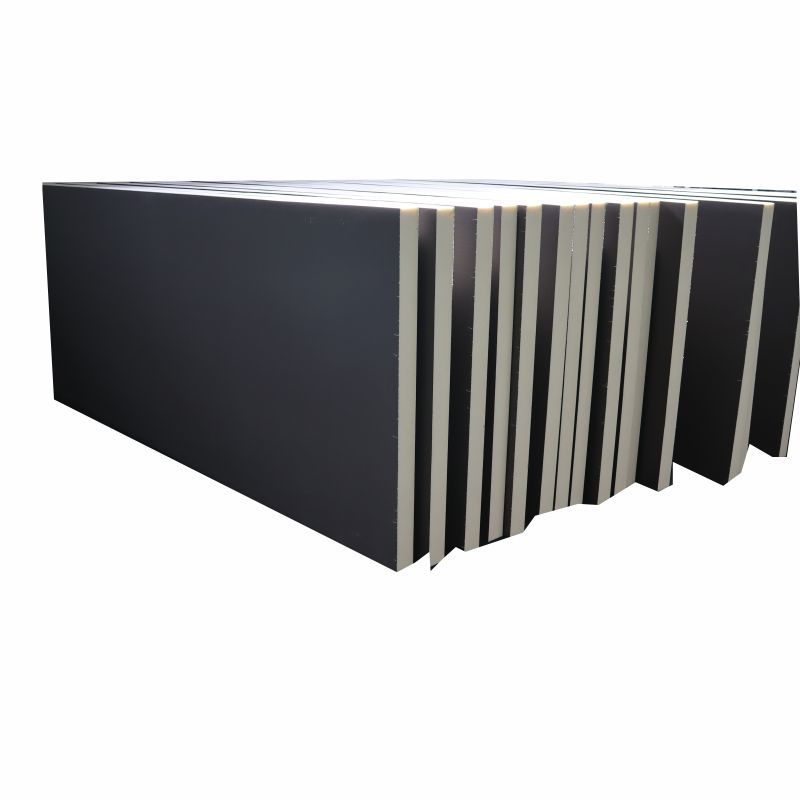

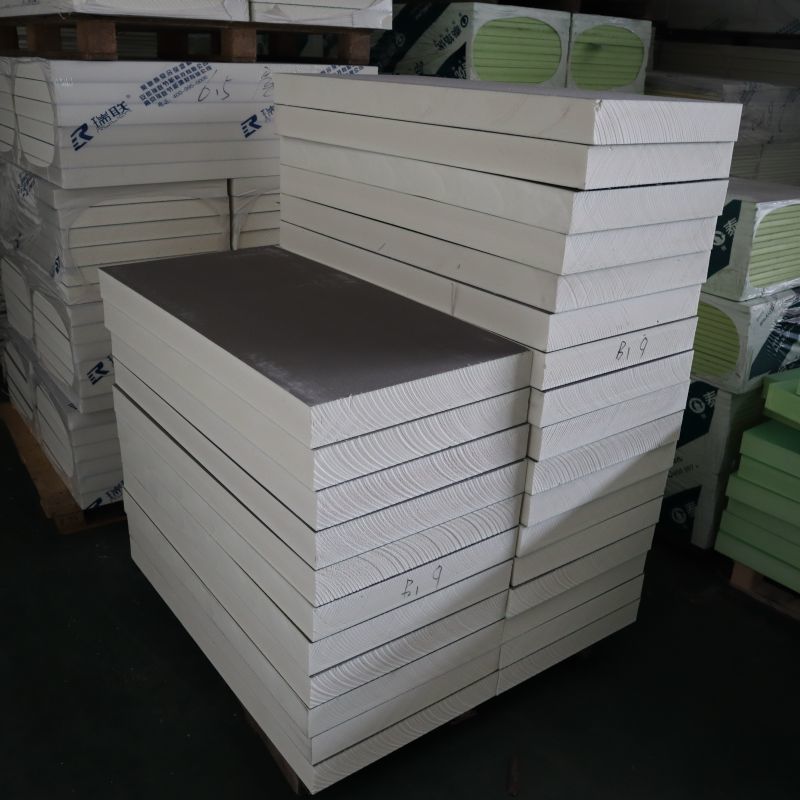

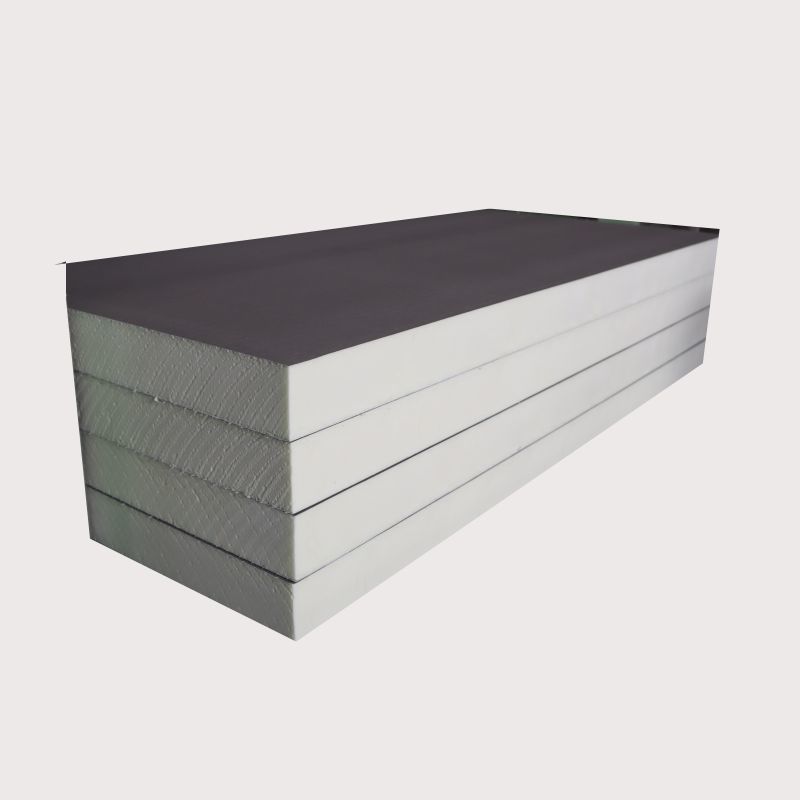

Product name		PIR Rigid Insulation Boards
Finish	Material	Aluminum Foil Facings or Fiber Glass Papers (Mortar Papers)
	Thickness	≤0.8 mm
	Tensile Bond Strength	0.12 MPa
	Colors	Customized available
Foam Core	Material	Polyisocyanurate(PIR)
	Density	37 kg/m³
	Thermal Conductivity	0.022 W/m·K
	Dimensional Stability	0.5%(70℃±2℃,48h,Length/width/Thickness)
	Colors	White,Yellow,Green,Blue etc customized available
Insulation Board	Dimensions	Standard:1200x600mm12400x1200 mm Customized:Length no limited,Width 1220 mm maximum
	Thickness	10-130mm
	Dimensional Stability	0.6%(70℃±2℃,48h,Length/width/Thickness)
	Water Absorption	0.9%(volume fraction)
	Compressive strength at 10%deformation	≥150 KPa
	Tensile Strength Perpen- dicular to Panel Direction	≥0.10 MPa
	Bending Deformation	≥6.5 mm
	Moisture Permeability Coeficient	≤6.5ng/Pa·m·s
	Fire Rating	B1
	Certification	ISO9001,ISO14001 and ISO45001(OHSAS18001),'Carbon Labelling'
	Applications	Roofs \|Walls \|Floors \|Ceilings \|HVAC System

Advantage

Ruilian® PIR Rigid Insulation Boards with aluminum foil Range

1. Excellent thermal insulation performance: polyurethane foam has low thermal conductivityand aluminum foil can reflect thermal radiation, thus improving the thermal insulation effect.

2. Good moisture-proof performance: The surface of the aluminum foil polyurethane insulationboard is covered with a layer of aluminum foil, which can effectively prevent water vaporpenetration and ensure the insulation effect.

3. Corrosion resistance: polurethane foam has good corrosion resistance and can resist thecorrosion of acid,alkali and other chemicals.

4. Easy installation: Aluminum foil polyurethane insulation board is lightweight and easy toinstall, which can significantly reduce construction costs.

5. Environmental protection and energy conservation: Aluminum foil polyurethane insulationboard materials are all environmentally friendly materials, which will not cause pollution to theenvironment, and have good energy-saving effects, which can significantly reduce energyconsumption.

Insulation Board Thickness (mm)	R-Value In Metric (m²K/W）	R-Value In Imperial (ft2·ºh/BTU)	Boards per pack (pcs)	m² Per pack	BoardsPer 40hc (pcs)	m² per 40hc	Price Term	Lead time	Payment
Standard (I):1200X600 mm
10	0.42	2.39	50	36	9500	6840	Fob Shanghai	25days	100%T/T in advance
20	0.83	4.78	25	18	4750	3420	Fob Shanghai	25days	100%T/T in advance
30	1.25	7.18	17	1224	3230	2325.6	Fob Shanghai	25days	100%T/T in advance
40	1.67	9.57	12	8.64	2280	1641.6	Fob Shanghai	25days	100%T/T in advance
50	2.08	11.96	10	7.2	1900	13680	Fob Shanghai	25days	100%T/T in advance
60	2.50	14.35	8	5.76	1520	1094.4	Fob Shanghai	25days	100%T/T in advance
70	2.92	16.74	7	5.04	1330	957.6	Fob Shanghai	25days	100%T/T in advance
80	3.33	19.14	6	4.32	1140	820.8	Fob Shanghai	25days	100%T/T in advance
90	3.75	21.53	5	3.60	950	684	Fob Shanghai	25days	100%T/T in advance
100	4.17	23.92	5	3.60	950	684	Fob Shanghai	25days	100%T/T in advance
110	4.59	26.31	4	2.88	760	547.2	Fob Shanghai	25days	100%T/T in advance
120	5.01	28.70	4	2.88	760	547.2	Fob Shanghai	25days	100%T/T in advance
130	5.43	31.09	3	2.16	570	410.4	Fob Shanghai	25days	100%T/T in advance

*Minimum order quantities and special conditions upon consultation

Insulation Board Thickness (mm)	R-Value In Metric (m²K/W）	R-Value In Imperial (ft2·ºh/BTU)	Boards per pack (pcs)	m² Per pack	BoardsPer 40hc (pcs)	m² per 40hc	Price Term	Lead time	Payment
Standard(I):2400X1200mm
10	0.42	2.39	50	144	2250	6480	Fob Shanghai	25days	100%T/T in advance
20	0.83	4.78	25	72	1125	3240	Fob Shanghai	25days	100%T/T in advance
30	1.25	7.18	16	46.08	720	2073.6	Fob Shanghai	25days	100%T/T in advance
40	1.67	9.57	12	34.56	540	1555.2	Fob Shanghai	25days	100%T/T in advance
60	2.50	14.35	8	23.04	360	1036.8	Fob Shanghai	25days	100%T/T in advance
70	2.92	16.74	7	20.16	315	907.2	Fob Shanghai	25days	100%T/T in advance
80	3.33	19.14	6	17.28	270	777.6	Fob Shanghai	25days	100%T/T in advance
90	3.75	21.53	5	14.4	225	648	Fob Shanghai	25days	100%T/T in advance
100	4.17	23.92	5	14.4	225	648	Fob Shanghai	25days	100%T/T in advance
110	4.59	26.31	4	11.52	180	518.4	Fob Shanghai	25days	100%T/T in advance
120	5.01	28.70	4	11.52	180	518.4	Fob Shanghai	25days	100%T/T in advance
130	5.43	31.09	3	8.64	135	388.8	Fob Shanghai	25days	100%T/T in advance

*Minimum order quantities and special conditions upon consultation
